OUTSIDE BROADCAST VAN 中継車
207 (音声車)
207は日本テレビの保有する7.1マルチチャンネル対応・ProTools搭載の音声中継車で、NiTRoが運用を受託しています。日テレでの運用がない時には外部貸出も可能です。最新設備と静かな作業空間で音声制作に集中することができます。
Audio Van 207
Audio Van 207 is a 7.1 multi-channel compatible ProTools-equipped audio relay vehicle owned by NTV, and is operated by NiTRo. It can also be loaned out to external parties when NTV is not operating it. With state-of-the-art equipment and a quiet work space, you can concentrate on audio production.

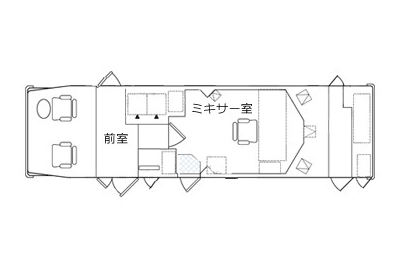

- SIZE / WEIGHT
- L:10.6m W:2.49m H:3.45m / 17,550kg
- GENERATOR
- 15kVA:富永物産HIT-15KK3

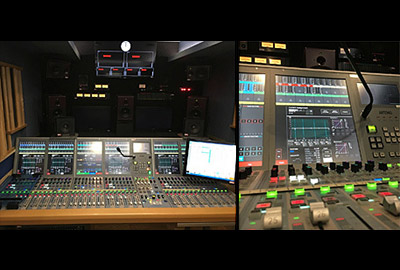

- MIXER
-
MAIN: CALREC ARTEMIS Light
・92 MIC/LINE IN
・16 LINE IN / 48LINE OUT
・48 AES I/O
・2SDI De-embedder
・MADI×10 / DANTE×1
・48Fader(16GPI)
EMG: YAMAHA DM-1000
- MONITOR SPEAKER
-
MAIN: PSI AUDIO A17-M(L/R/C/Ls/Rs)/A14(TOP L/R)
SUB WOOFER:PSI AUDIO A225-M
NEAR FIELD:AURATONE 5C Super Sound Cube
- RECORDER
-
AVID PRO TOOLS HDX
TASCAM DA-6400dp
Blackmagic HyperDeck Pro
TASCAM SS-CDR200
- EFFECTOR
-
t.c.electronic: SYSTEM6000
Bricasti Design M7 Reverb + M10
dbx 120A
